Bench Scales for Basic Industrial Applications

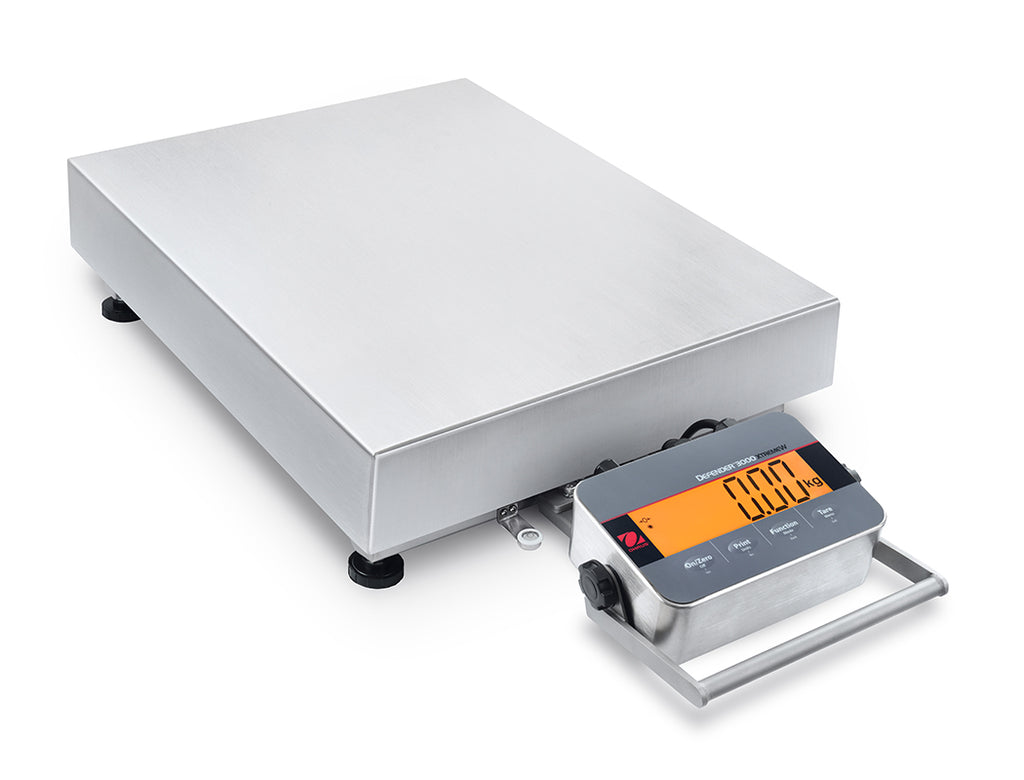

The OHAUS Defender™ 3000 i-D33XW150B1X5 weighs up to 150 kg at 20 g readability on a 304-stainless steel platform — built for general weighing, parts counting, checkweighing and totalization in production, packaging, shipping and receiving.
-
Bright LCD with color alerts for checkweighing. In Checkweighing mode the display changes color — yellow, green, red — so an operator knows at a glance whether a load is under, in, or over the target range.
-
Tough design for industrial applications. 304-stainless steel platform, powder-coated steel tubular frame, aluminum load cell, and a stainless steel indicator on a steel mounting bracket.
-
Versatile. Parts counting, checkweighing and totalization built in, with RS232 included and USB or Ethernet available for printing and data capture.
-
150% overload protection with non-slip adjustable rubber feet.
-
Legal for trade. NTEP certified and Measurement Canada approved.
Every scale we ship arrives calibrated, with a NIST-traceable certificate. If you keep an equipment register, we'll assign the ID, apply the sticker, and hand you documentation your auditor will accept — on day one, not on the next service visit.
Specifications
| Maximum Capacity |
150 kg (300 lb) |
| Readability |
20 g (0.05 lb) |
| Readability (Certified) |
50 g (0.1 lb) |
| Platform Size |
650 × 500 mm (25.6 × 19.7 in) |
| Platform Construction |
Stainless Steel |
| Construction |
Stainless steel indicator, 304-stainless steel platform, powder-coated steel tubular frame, aluminum load cell, non-slip adjustable rubber feet |
| Display |
7 Segment LCD with multicolor backlight |
| Applications |
Weighing, Checkweighing, Counting, Totalization |
| Units of Measurement |
Gram, Kilogram, Ounce, Pound, Pound:Ounce |
| Power |
AC Power (Included), Rechargeable Battery (Included) |
| Battery Life |
100 Hours with Rechargeable Battery |
| Communication |
Standard RS232 and optional USB Device or Ethernet |
| Design Features |
150% overload protection |
| Protection Rating |
Not Applicable |
| Tare Range |
To capacity by subtraction |
| Calibration Test Weight |
150 kg, OIML M1 or ASTM CL F |
| Legal for Trade |
Measurement Canada Approved, NTEP Certified |
| Working Environment |
-10°C – 40°C, 85%RH, non-condensing |
| Net Weight |
27.4 kg (60.5 lb) |
| OHAUS Part Number |
30685220 |
