Bench Scales for Basic Industrial Applications

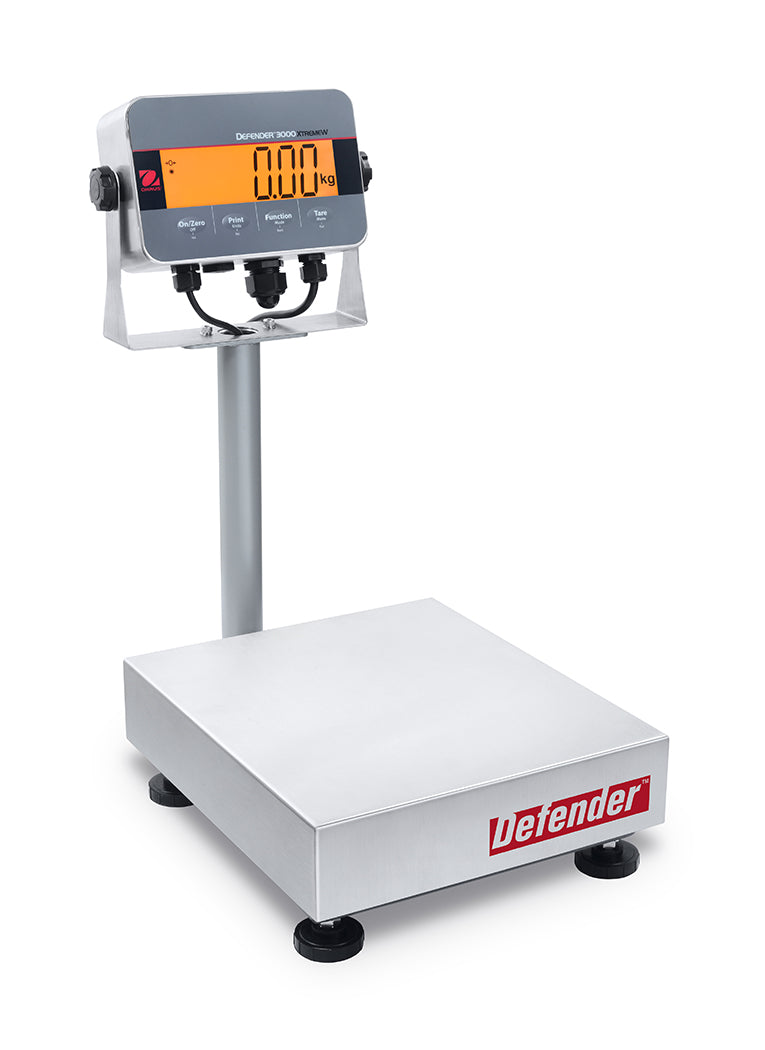

The OHAUS Defender™ 3000 i-D33XW30B1R1 weighs up to 30 kg at 5 g readability on a 304-stainless steel platform — built for general weighing, parts counting, checkweighing and totalization in production, packaging, shipping and receiving.
-
Bright LCD with color alerts for checkweighing. In Checkweighing mode the display changes color — yellow, green, red — so an operator knows at a glance whether a load is under, in, or over the target range.
-
Tough design for industrial applications. 304-stainless steel platform, powder-coated steel tubular frame, aluminum load cell, and a stainless steel indicator on a steel mounting bracket.
-
Versatile. Parts counting, checkweighing and totalization built in, with RS232 included and USB or Ethernet available for printing and data capture.
-
150% overload protection with non-slip adjustable rubber feet.
-
Legal for trade. NTEP certified and Measurement Canada approved.
Every scale we ship arrives calibrated, with a NIST-traceable certificate. If you keep an equipment register, we'll assign the ID, apply the sticker, and hand you documentation your auditor will accept — on day one, not on the next service visit.
Specifications
| Maximum Capacity |
30 kg (60 lb) |
| Readability |
5 g (0.01 lb) |
| Readability (Certified) |
10 g (0.02 lb) |
| Platform Size |
355 × 305 mm (14 × 12 in) |
| Platform Construction |
Stainless Steel |
| Construction |
Stainless steel indicator, 304-stainless steel platform, powder-coated steel tubular frame, aluminum load cell, non-slip adjustable rubber feet |
| Display |
7 Segment LCD with multicolor backlight |
| Applications |
Weighing, Checkweighing, Counting, Totalization |
| Units of Measurement |
Gram, Kilogram, Ounce, Pound, Pound:Ounce |
| Power |
AC Power (Included), Rechargeable Battery (Included) |
| Battery Life |
100 Hours with Rechargeable Battery |
| Communication |
Standard RS232 and optional USB Device or Ethernet |
| Design Features |
150% overload protection |
| Protection Rating |
Not Applicable |
| Tare Range |
To capacity by subtraction |
| Calibration Test Weight |
30 kg, OIML M1 or ASTM CL F |
| Legal for Trade |
Measurement Canada Approved, NTEP Certified |
| Working Environment |
-10°C – 40°C, 85%RH, non-condensing |
| Net Weight |
12.1 kg (26.8 lb) |
| OHAUS Part Number |
30685178 |
