Portable Precision Ready for the Field

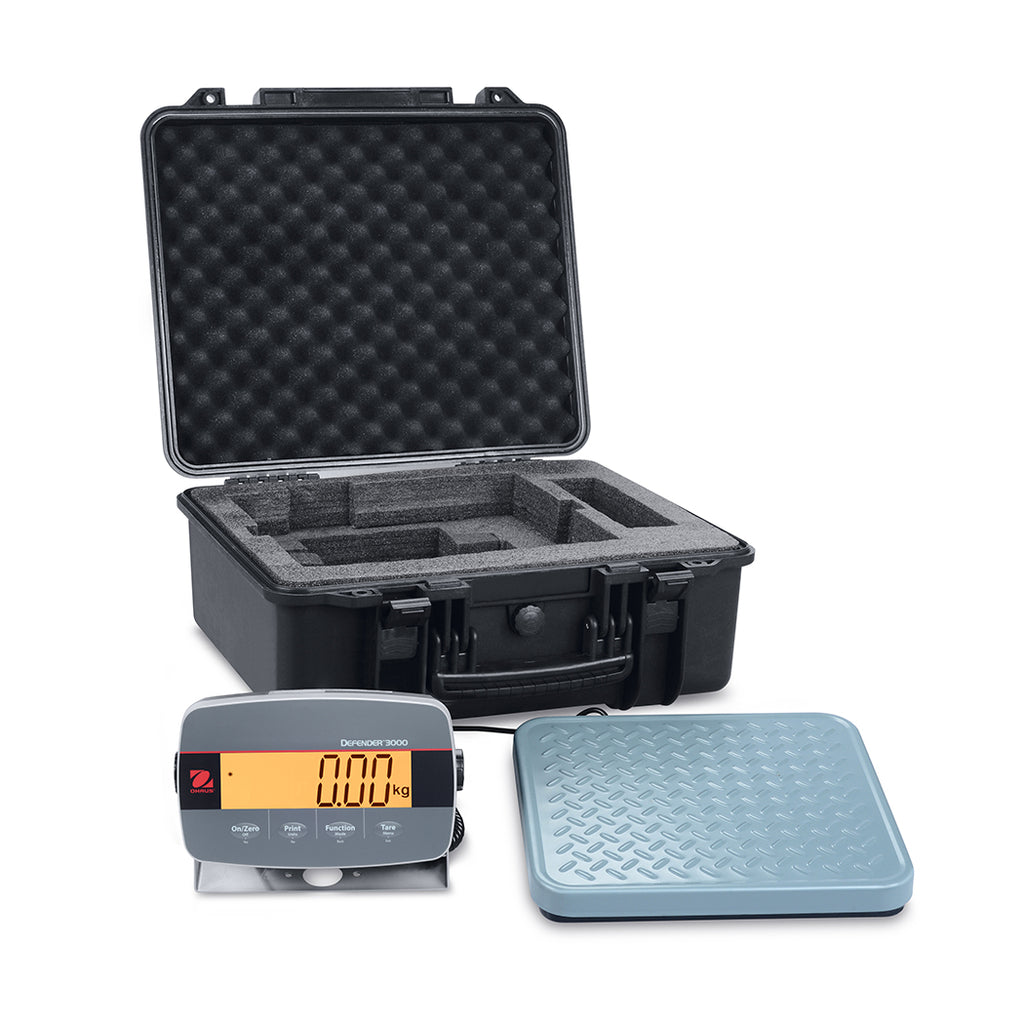

The OHAUS Defender™ 3000 i-D33P75SD is a portable field-test scale weighing up to 75 kg at 0.02 kg readability on a painted steel diamond-plate base — built to be carried to the load rather than the load carried to it. For receiving docks, field checks, and anywhere a fixed bench scale isn't practical.
-
Bright LCD with color alerts for checkweighing. In Checkweighing mode the display changes color — yellow, green, red — so an operator knows at a glance whether a load is under, in, or over the target range.
-
Made to travel. ABS plastic indicator and case on a powder-coated steel base, with a flexible coiled cable that extends up to 9 ft so the display goes where the operator is.
-
Versatile. Parts counting, checkweighing and totalization built in, with RS232 included and USB or Ethernet available for printing and data capture.
-
125% overload protection, auto-zero tracking, selectable span calibration points, Geo Code gravity adjustment, and software menu lockouts.
Every scale we ship arrives calibrated, with a NIST-traceable certificate. If you keep an equipment register, we'll assign the ID, apply the sticker, and hand you documentation your auditor will accept — on day one, not on the next service visit.
Specifications
| Maximum Capacity |
75 kg (150 lb) |
| Readability |
0.02 kg (0.05 lb) |
| Platform Size |
316 × 280 mm (12.4 × 11 in) |
| Platform Construction |
Painted Steel Diamond Plate |
| Construction |
ABS plastic indicator and case, powder-coated steel base |
| Display |
7 Segment LCD with Multicolor Backlight |
| Applications |
Weighing, Parts Counting, Checkweighing, and Totalization |
| Units of Measurement |
Gram, Kilogram, Metric Tons, Ounce, Pound, Pound:Ounce |
| Power |
6 C (LR14) Batteries (Not Included), AC Power (Included), Rechargeable Battery (Not Included) |
| Battery Life |
120 Hours with Disposable Batteries, 72 Hours with Rechargeable Battery |
| Communication |
Standard RS232 and optional USB Device or Ethernet |
| Design Features |
Flexible coiled cable (extendable up to 9 ft.), 125% overload protection, selectable span calibration points, auto-zero tracking, battery-saving auto-off, Geo Code geographical gravity calibration adjustment, and software menu lockouts |
| Protection Rating |
Not Applicable |
| Tare Range |
To capacity by subtraction |
| Calibration Test Weight |
75 kg, OIML M1 or ASTM CL F |
| Legal for Trade |
Not Applicable |
| Working Environment |
-10°C – 40°C, 85%RH, non-condensing |
| Net Weight |
9 kg (19.8 lb) |
| OHAUS Part Number |
30728938 |
