Multi-purpose portable weighing for everyday production and lab use

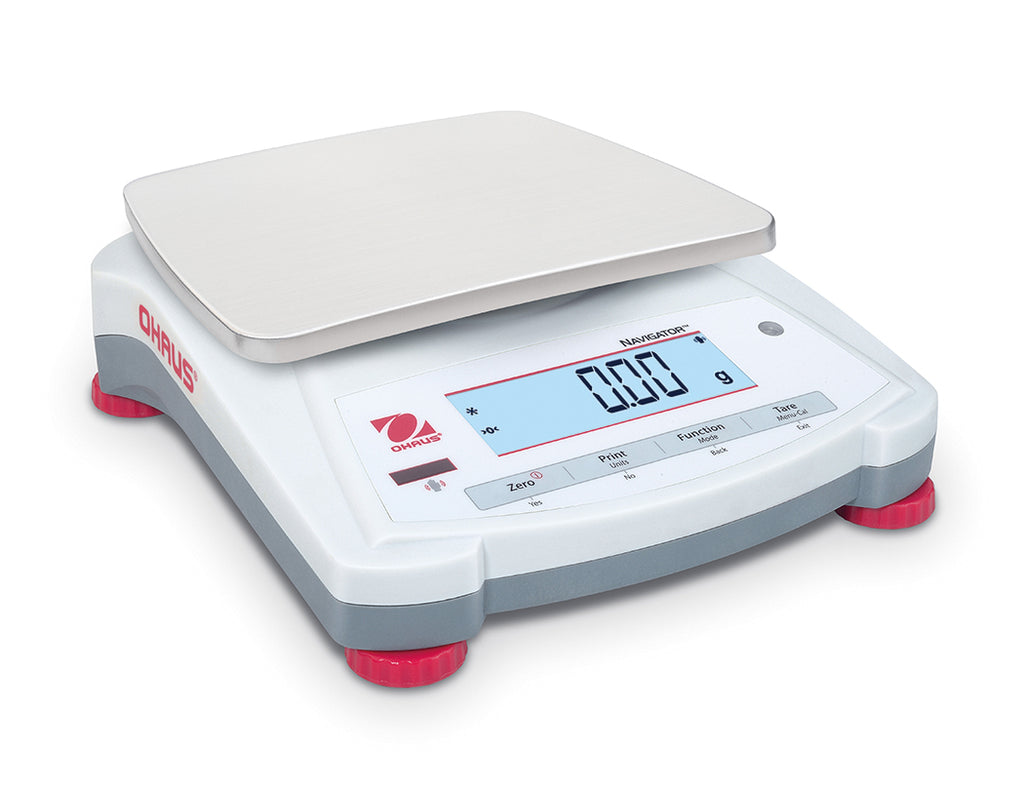

The OHAUS Navigator™ NV2202 handles 2,200 g at 0.01 g readability — enough resolution for spice dosing, ingredient checks, parts counting and QA sampling, in a balance light enough to move between stations. Runs on the included AC adapter or four C batteries for up to 200 hours, so a power drop on the plant floor doesn't stop the line.
-
One-second stabilization. Advanced weighing technology settles fast, so operators aren't standing still waiting on a reading.
-
4× overload protection. Withstands loads up to four times rated capacity — the difference between a bumped pan and a replacement invoice.
-
Built for the floor. ABS housing, stainless steel pan, transport lock, slip-resistant adjustable feet, and a leveling bubble.
-
Four weighing modes. Weighing, parts counting, percent weighing and checkweighing, in ten units of measure.
Every balance we ship arrives calibrated, with a NIST-traceable certificate. If you keep an equipment register, we'll assign the ID, apply the sticker, and hand you documentation your auditor will accept — on day one, not on the next service visit.
Specifications
| Maximum Capacity |
2,200 g |
| Readability |
0.01 g |
| Repeatability, typical |
0.02 g |
| Linearity ± |
0.05 g |
| Stabilization Time |
2 s |
| Pan Size |
190 × 144 mm (7.5 × 5.7 in) |
| Pan Construction |
Stainless Steel |
| Dimensions (W × L × H) |
204 × 230 × 70 mm |
| Display |
LCD with white backlight |
| Power |
AC adapter (included) or 4 × C (LR14) batteries (not included) |
| Battery Life |
200 hours, disposable batteries |
| Communication |
RS232, USB or Ethernet (available as accessories) |
| Applications |
Weighing, Parts Counting, Percent Weighing, Checkweighing |
| Units of Measurement |
Carat, Grain, Gram, Kilogram, Newton, Ounce, Ounce Troy, Pennyweight, Pound, Pound:Ounce |
| Calibration Test Weight |
2,000 g, OIML F2 or ASTM Class 4 |
| Working Environment |
10–40°C (50–104°F), 85% RH non-condensing |
| Net Weight |
1 kg (2.2 lb) |
| Legal for Trade |
Not applicable |
